· FEATURE
Rated supply voltage 220~240VAC
2-3h rated duration
Self Test Emergency System
4-year guarantee
(battery 2-year guarantee)
Battery could be changed

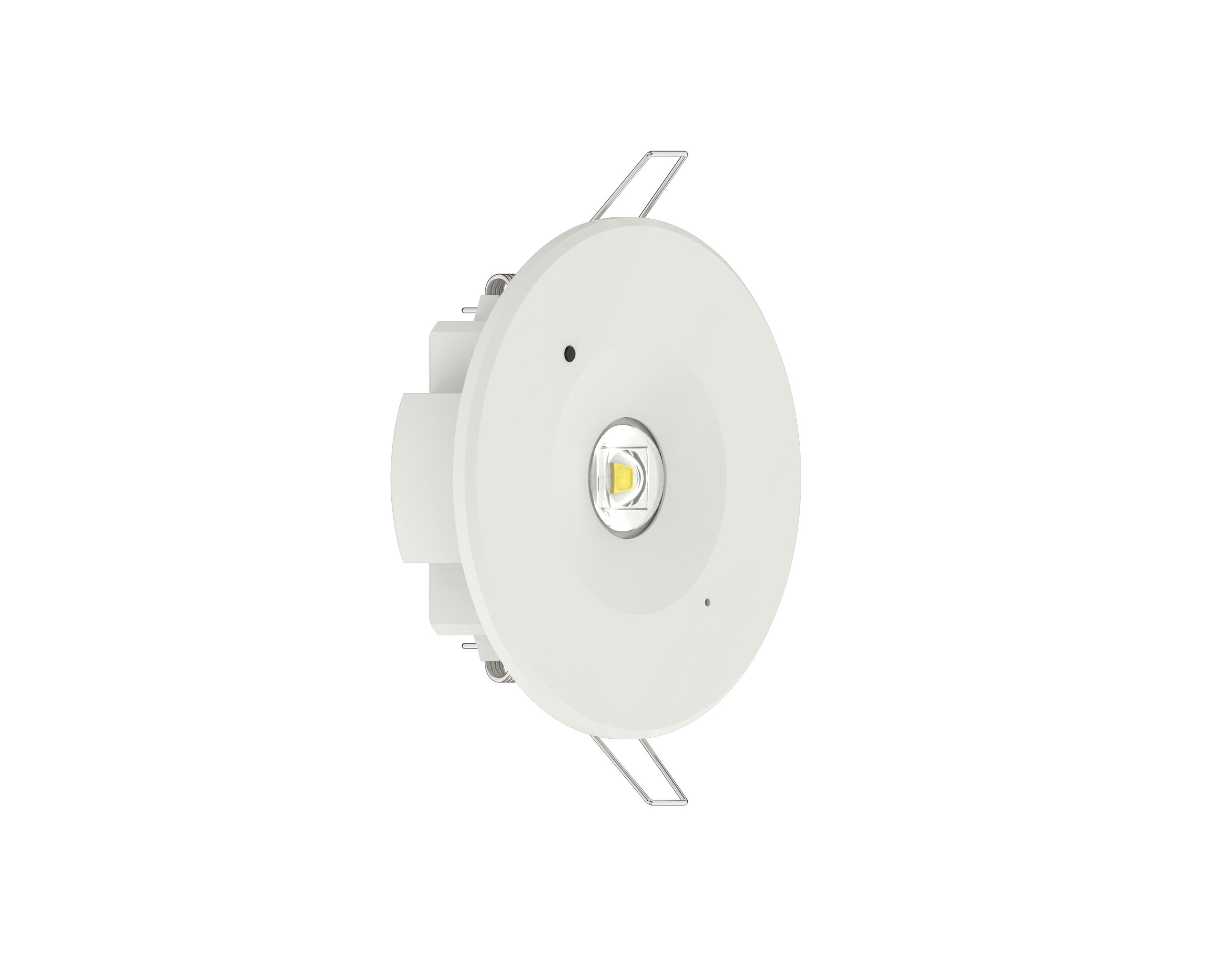

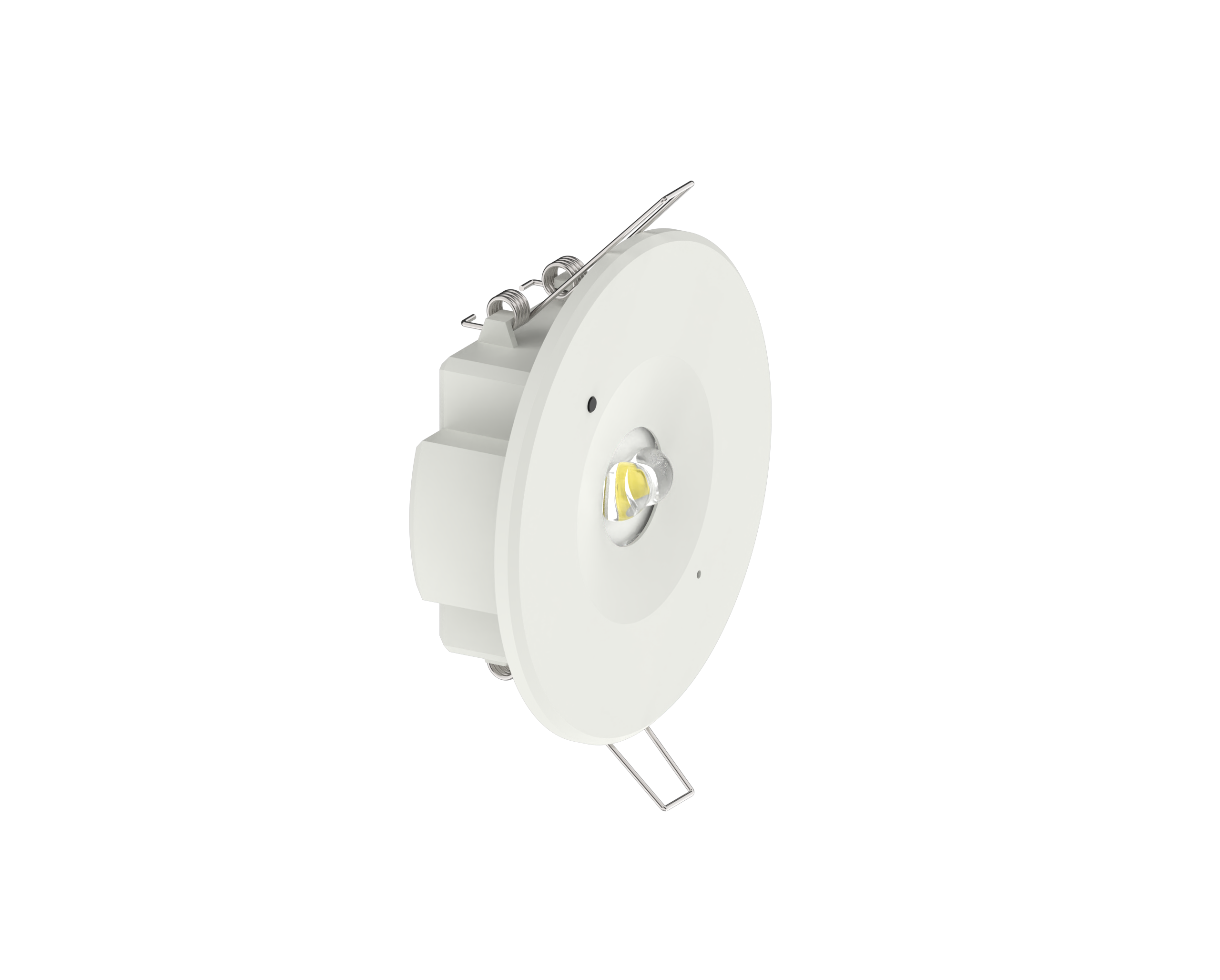

Recessed mounted installation mode
LENS could be changed
LiFePO4 with longer life

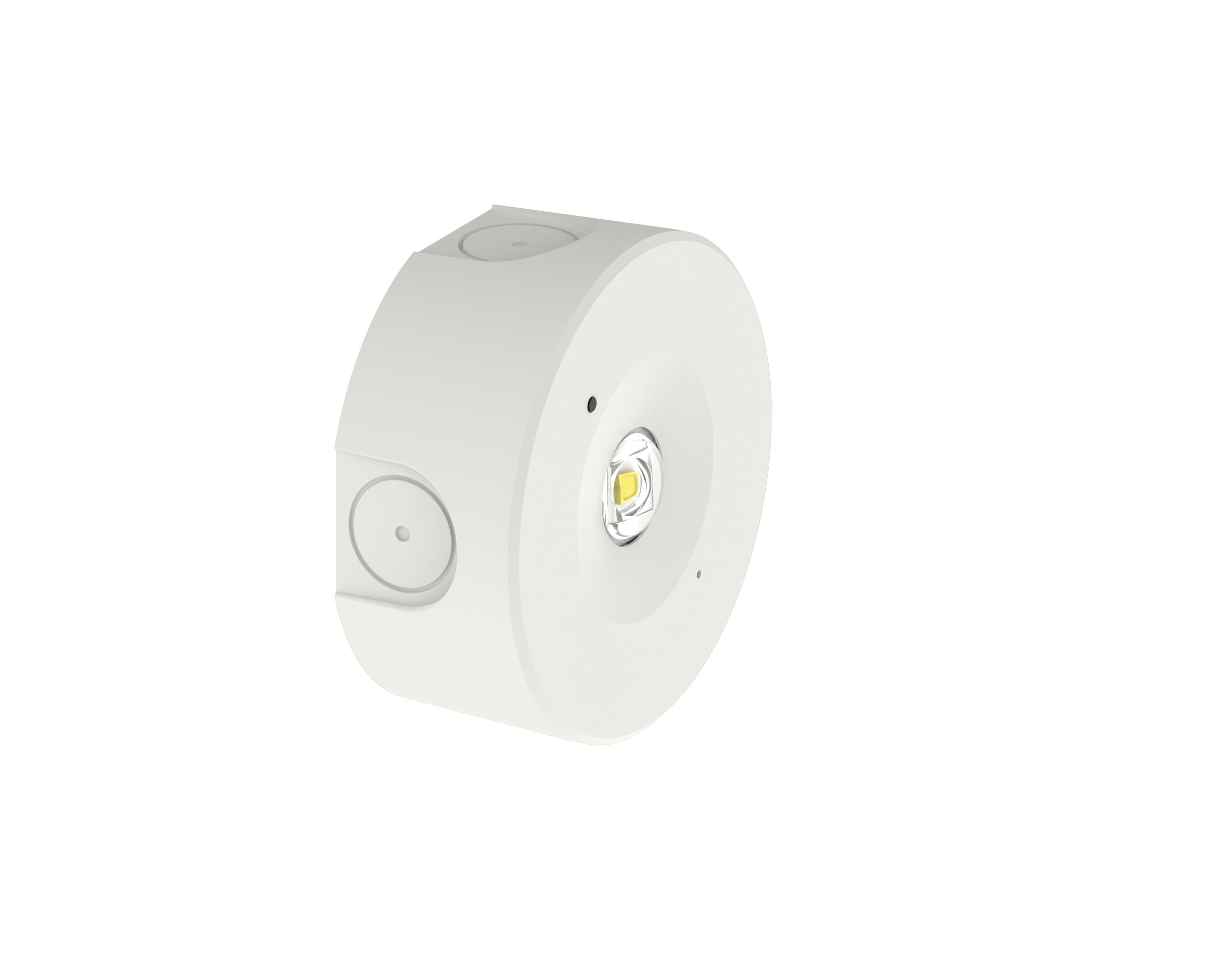

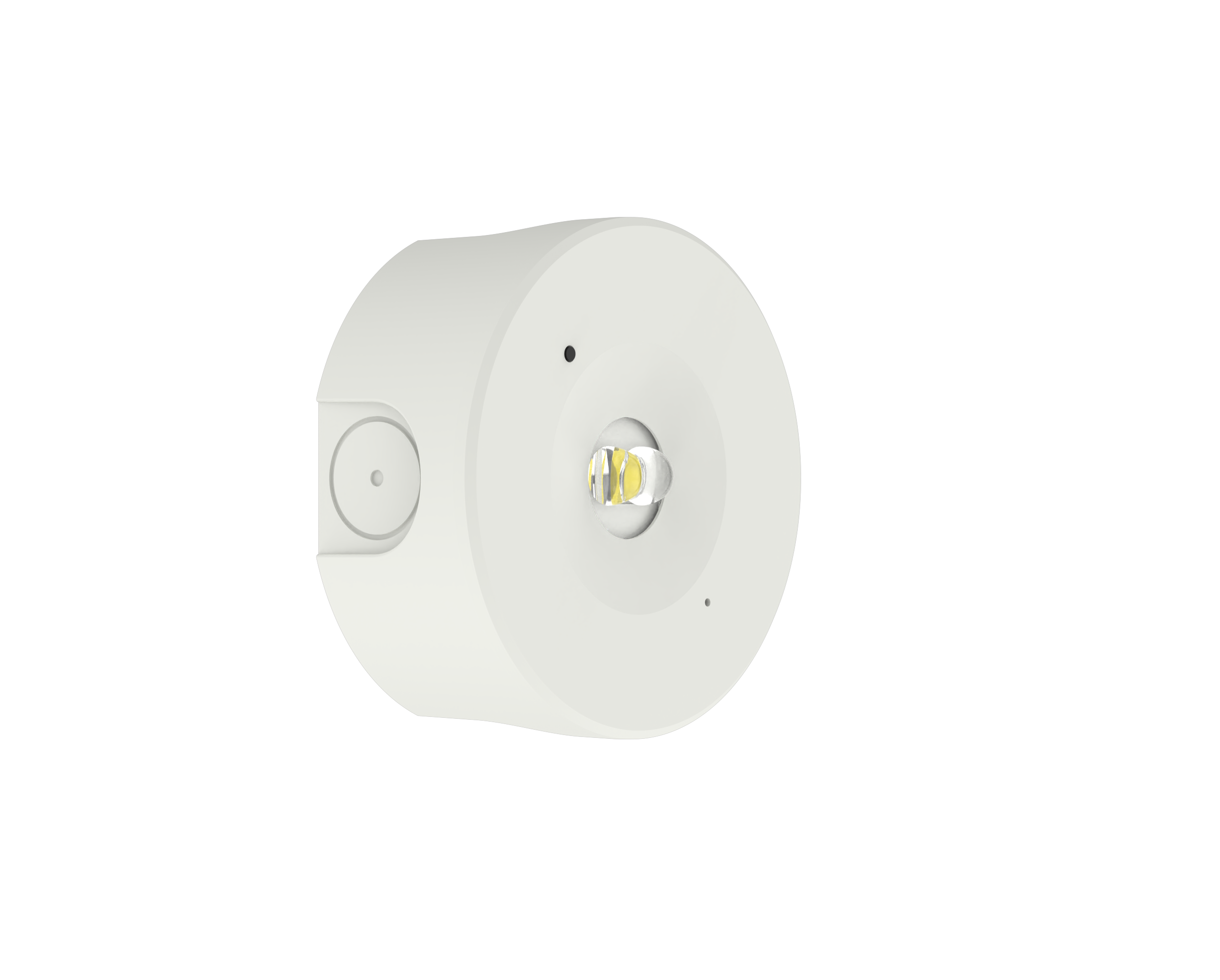

Surface mounted installation mode
Accord with AS2293.3
· PRODUCT DETAILS
Prat No. | Input Voltage | Output Power(MN/NN) | Lumen Output(MN/NN) | Charge Duration | Duration | Battery | Function |
GLO-NN1WO/C-3H-LI | 220~240V | 1.2W | 150lm/110lm | 24H | 3H | 3.2V 1500mAh LiFePO4 | BS/ST |
GLOP-NN2WO/C-2H-LI | 220~240V | 1.6W | 200lm/145lm | 24H | 2H | 3.2V 1500mAh LiFePO4 | BS/ST |
GLOP-NN2WO/C-3H-LI | 220~240V | 1.6W | 200lm/145lm | 24H | 3H | 3.2V 2000mAh LiFePO4 | BS/ST |
Note: BS=Basic ST=Self Test DL=DALI IOT=Zigbee System
· MOUNTING DISTANCE
GLO-NN1W
Open | 1W | |
H(m) | a(m) | b(m) |
2.5 | 4.8/3.5 | 12.8/9.6 |
2.8 | 4.8/3.5 | 13/9.7 |
3 | 4.9/3.5 | 13.2/9.8 |
4 | 4.9/3.2 | 13.8/9.9 |
6 | 4.4/0.7 | 14/8.8 |
8 | 2.4/0 | 13/5 |
10 | / | 10.6/0 |
12 | / | 3.7/0 |
Corridor | 1W | ||
H(m) | a(m) | b(m) | d(m) |
7.9/6.3 | 2.8/2 | 7.5/5.7 | 18.3/15.7 |
8.3/6.2 | 2.9/1.9 | 7.8/5.7 | 19.6/16.5 |
8.5/6 | 2.8/1.8 | 7.9/5.6 | 20.3/17 |
8.8/4.3 | 2.6/1.4 | 8/5.2 | 23.5/17.7 |
5.9/0 | 1.8/0 | 7.1/3.7 | 24.6/14.9 |
/ | / | 5.5/0 | 17.5/0 |
/ | / | 2.5/0 | 12.9/0 |
GLO-NN2W
Open | 2W | |
H(m) | a(m) | b(m) |
2.5 | 5.4/4.2 | 13.5/10.9 |
2.8 | 5.6/4.2 | 14.3/11.2 |
3 | 5.7/4.3 | 14.6/11.4 |
4 | 6/4.3 | 15.9/11.9 |
6 | 5.9/3.4 | 16.9/11.9 |
8 | 5.2/0 | 16.9/10.3 |
10 | 3/0 | 15.9/6 |
12 | / | 14.4/0 |
15 | / | 3.8/0 |
Corridor | 1W | ||
H(m) | a(m) | b(m) | d(m) |
8.6/6.9 | 3.3/2.3 | 8.4/6.5 | 21.3/17.3 |
9/7.2 | 3.3/2.3 | 8.7/6.6 | 22.4/17.9 |
9.2/7.3 | 3.3/2.2 | 8.9/6.6 | 23.1/18.4 |
10.2/7.2 | 3.2/1.9 | 9.4/6.4 | 25.5/20.4 |
9.6/0 | 2.5/0 | 8.8/5 | 29.6/19.1 |
/ | / | 7.6/2.6 | 19.2/10.8 |
/ | / | 6.1/0 | 19.4/0 |
/ | / | 1.2/0 | 12/0 |
