PILOT

PILOT

Popular in EU Market.

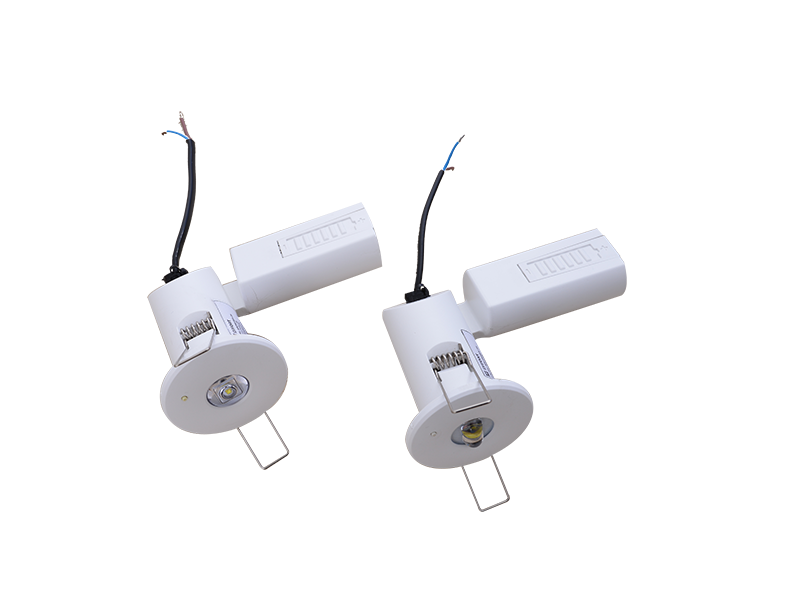

This is a recessed LED emergency lighting,supplied with a choice of various optics for Open Area and Corridor Area distribution.The rotating design is more humanized.Each light comes complete with Effort’s unique articulated control gear for flexibility and can be used in multiple interior applications,including corridors,stairwells and open area.

· Feature

Rated supply voltage 220~240VAC

1-3h rated duration

Self Test Emergency System

Battery could be changed

Recessed mounted installation mode

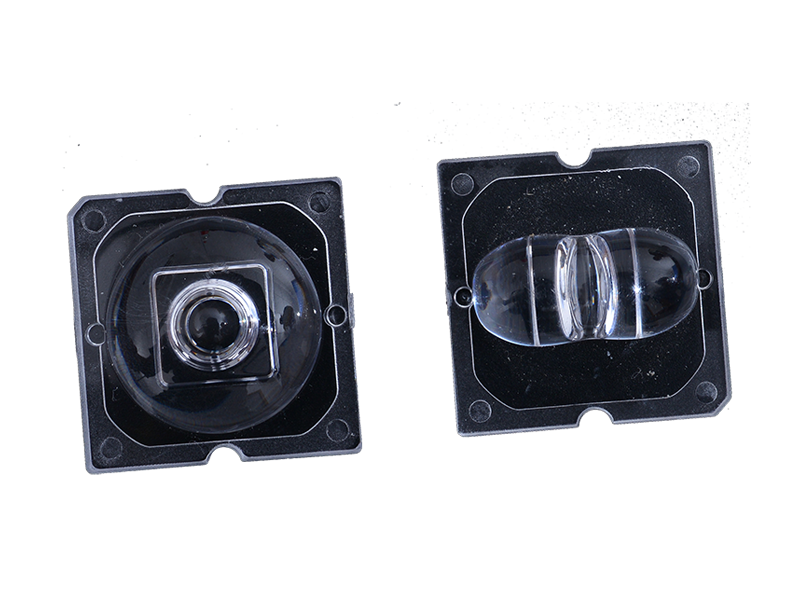

LENS could be changed

LiFePO4 with longer life

4-year guarantee (battery
2-year guarantee)

Accord with AS2293.3


· PRODUCT DETAILS

Part No.

InputVoltage

OutputPower

LumenOutput(O/C)

ChargeDuration

Duration

Battery

Function

PIL-NN1WO/C-3H-LI

220~240V

1W

120lm/104lm

24H

3H

3.2V 1500mAh LiFePO4

BS/ST/DL

PIL-NN3WO/C-1H-LI

220~240V

3W

250lm/185lm

24H

1H

3.2V 1500mAh LiFePO4

BS/ST/DL

PIL-NN3WO/C-1H-LI

220~240V

3W

250lm/185lm

24H

3H

3.2V 4000mAh LiFePO4

BS/ST/DL

PIL-NN2WO/C-2H-LI

220~240V

2W

200lm/155lm

16H

2H

3.2V 1500mAh LiFePO4

BS/ST/DL

PIL-NN4WO/C-2H-LI

220~240V

4W

320lm/251lm

16H

2H

3.2V 3000mAh LiFePO4

BS/ST/DL

Note: BS=Basic ST=Self Test DL=DALI IOT=Zigbee System


· MOUNTING DISTANCE

0.5 lx Open Area Lens

Open

1W

H(m)

a(m)

b(m)

2.8

4.55

12.1

3

4.6

12.25

4

4.6

12.7

5

4.4

12.85

6

3.9

12.7

7

2.9

12.2

8

/

11.2

9

/

9.7

10

/

6.1

11

/

2.3


Open

3W

H(m)

a(m)

b(m)

2.8

6.2

15.5

3

6.3

16.1

4

6.5

17.2

5

6.6

17.7

6

6.5

18.1

7

6.3

18.2

8

5.8

18.1

9

5.1

17.8

10

3.9

17.2

11

1.8

16.3

12

/

15

13

/

12.5

14

/

9.5

15

/

6

1 lx Corridor Lens

Corridor

1W

H(m)

a(m)

b(m)

c(m)

d(m)

2.8

6.2

1.7

5.4

16.1

3

6

1.6

5.2

16.4

4

3.85

1.1

4.6

16.75

5

/

/

3.6

14.4


Corridor

3W

H(m)

a(m)

b(m)

c(m)

d(m)

2.8

8.15

2.72

7.3

20.05

3

8.3

2.69

7.5

20.05

4

8.8

2.35

7.5

22.8

5

8.8

1.8

7

24.2

6

5.3

1.3

6

24.9

7

/

/

5

22.5

8

/

/

4

20

9

/

/

2.5

16
