ECSL

​Popular in EU Market.

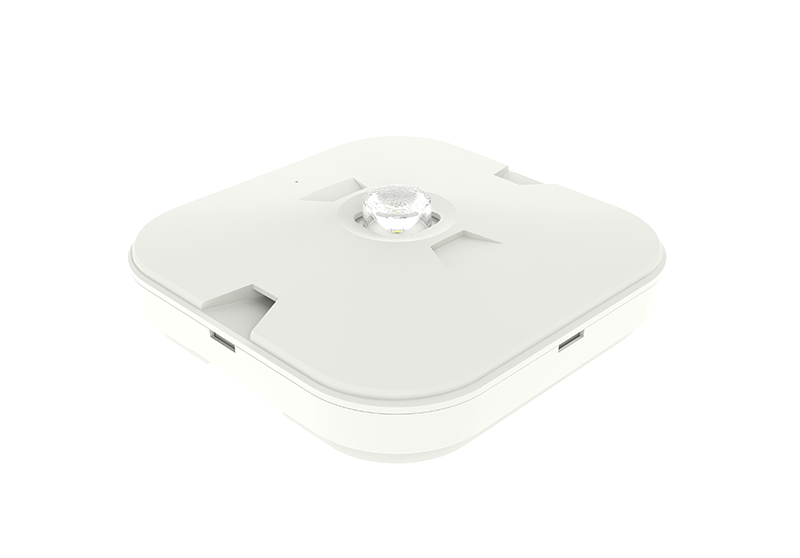

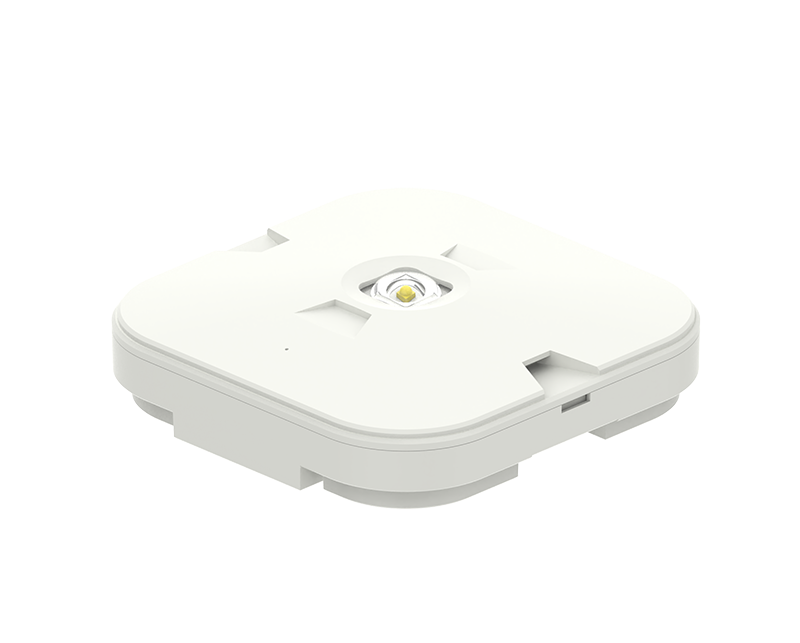

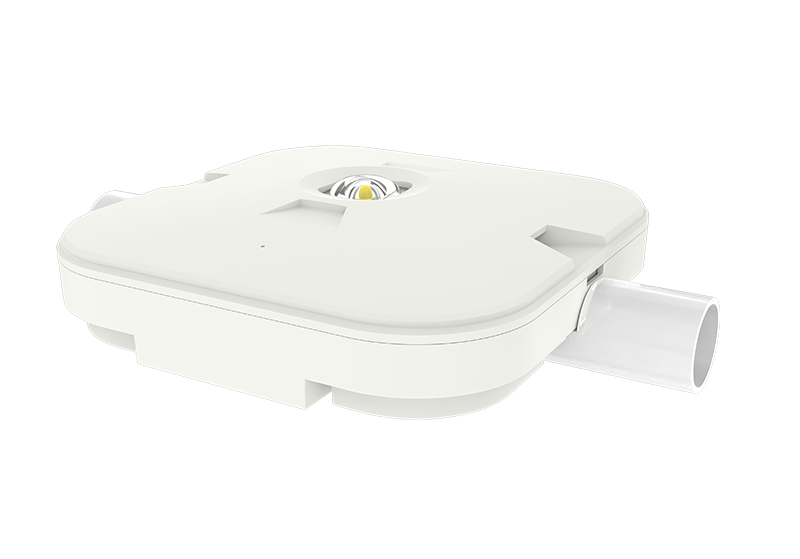

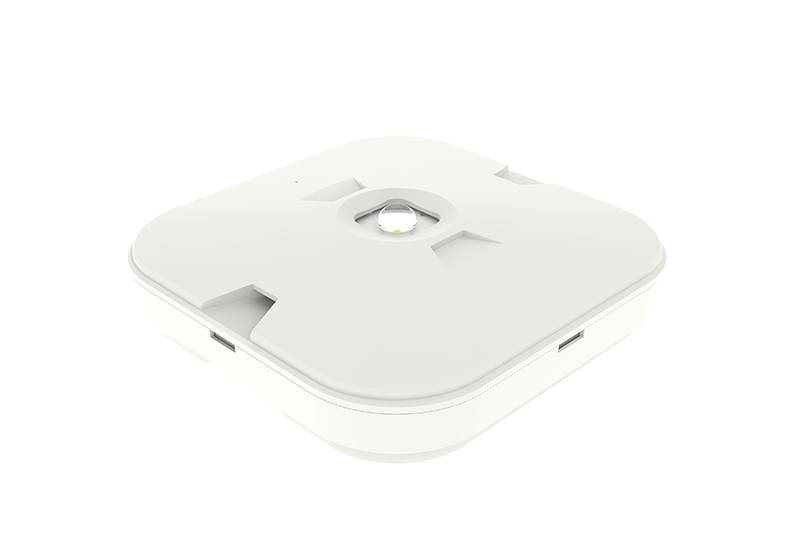

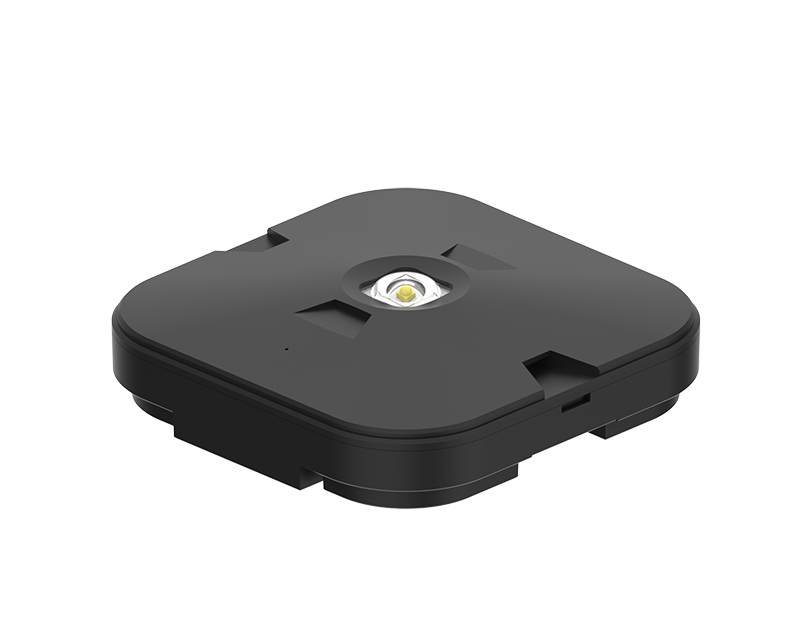

This is a surface mounted LED emergency lighting, D63,D40,with IP54supplied with a choice of various optics for Open Area and Corridor Area distribution. Each light comes complete with Effort’s unique articulated control gear for flexibility and can be used in multiple interior applications,including corridors and open area.

· Feature

Rated supply voltage 220~240VAC

2/3h rated duration

Self Test Emergency System

Battery could be changed

Surface mounted installation mode

IP54 ingress protection
suitable for indoor application

LiFePO4 with longer life

4-year guarantee (battery
2-year guarantee)

Accord with AS2293.3

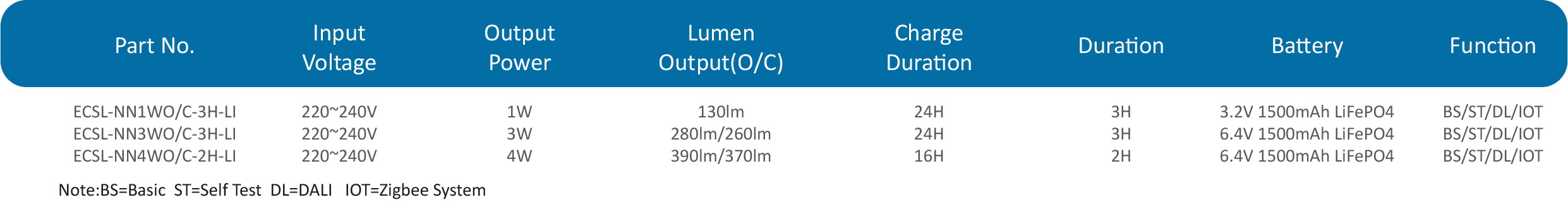

· PRODUCT DETAILS

Part No.

InputVoltage

OutputPower

LumenOutput(O/C)

ChargeDuration

Duration

Battery

Function

ECSL-NN1WO/C-3H-LI

220~240V

1W

130lm

24H

3H

3.2V 1500mAh LiFePO4

BS/ST/DL/IOT

ECSL-NN3WO/C-3H-LI

220~240V

3W

280lm/260lm

24H

3H

6.4V 1500mAh LiFePO4

BS/ST/DL/IOT

ECSL-NN4WO/C-2H-LI

220~240V

4W

390lm/370lm

16H

2H

6.4V 1500mAh LiFePO4

BS/ST/DL/IOT

Note: BS=Basic ST=Self Test DL=DALI IOT=Zigbee System

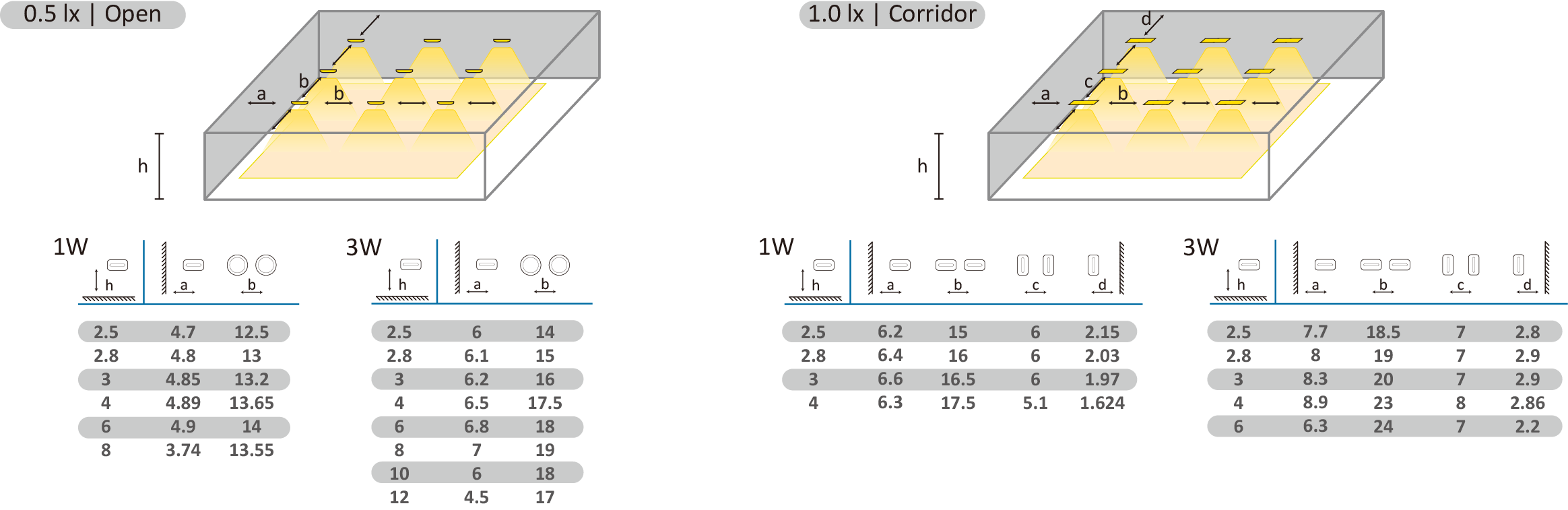

· MOUNTING DISTANCE

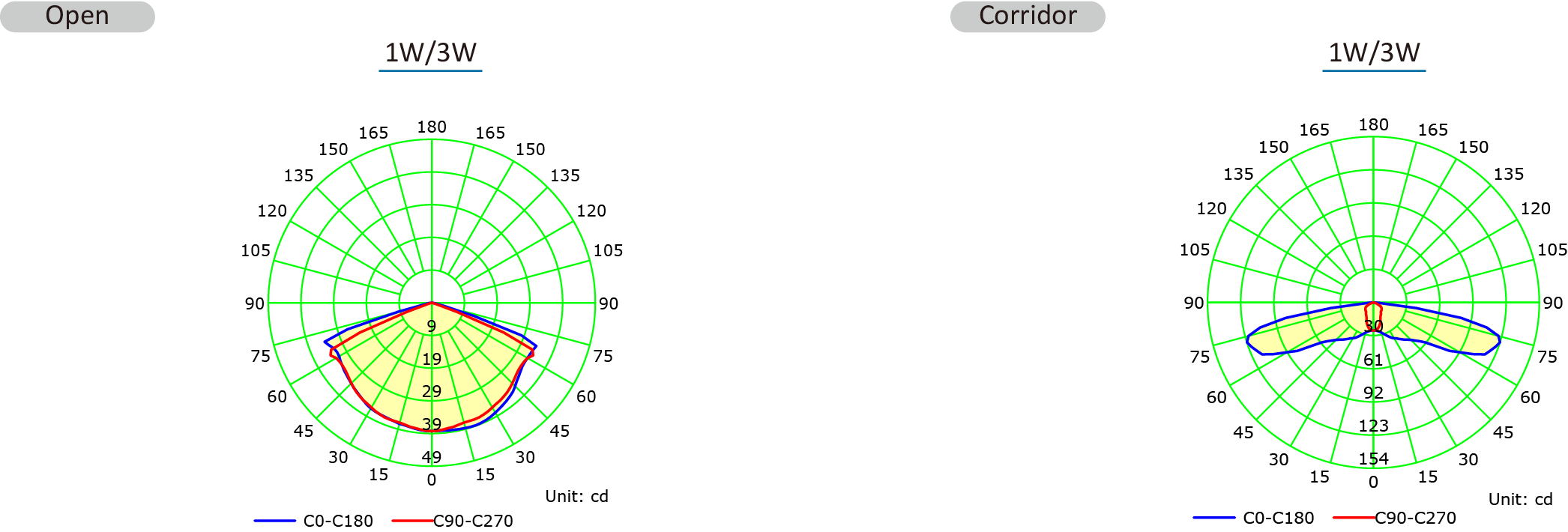

0.5 lx Open Area Lens

Open

1W

H(m)

a(m)

b(m)

2.8

4.5

11.2

3

4.5

11.4

4

4.5

12.1

5

2

12.3


Open

3W

H(m)

a(m)

b(m)

2.8

5.6

11.2

3

5.7

11.4

4

6

12.1

5

6.2

12.3

1 lx Corridor Lens

Corridor

1W

H(m)

a(m)

b(m)

c(m)

d(m)

2.8

7.1

0.9

2.2

20.8

3

7.1

0.9

2.2

21.4

4

7.2

0.9

2.4

19.8

5

5.9

1

3

20.6


Corridor

3W

H(m)

a(m)

b(m)

c(m)

d(m)

2.8

9

1.8

4.5

22

3

9.2

1.8

4.6

22.7

4

9.7

1.8

5.1

25.1

5

9.8

2.4

5.2

26.5

6

7.0

2.1

5.1

26

7

5.7

1.5

6.2

24.6
