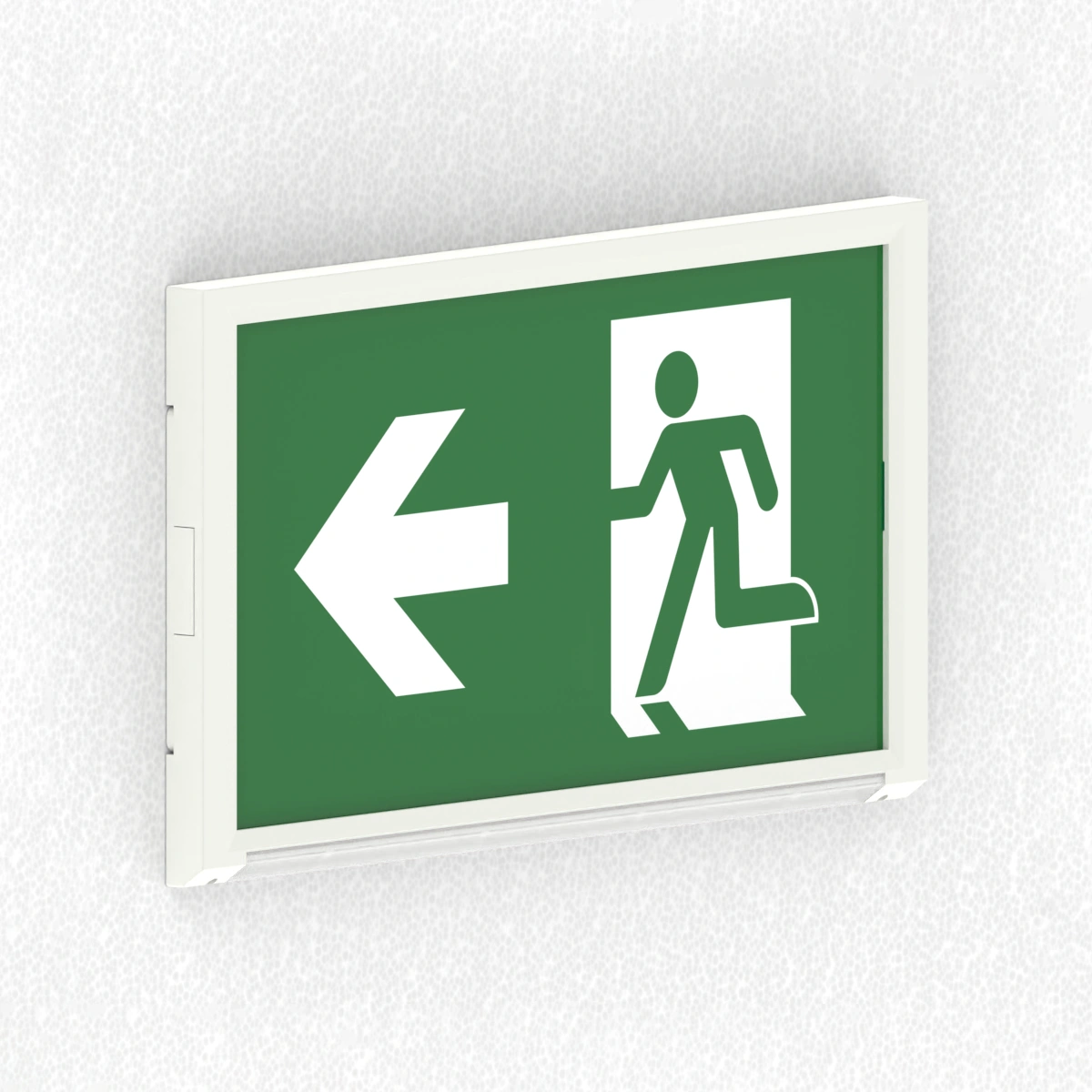

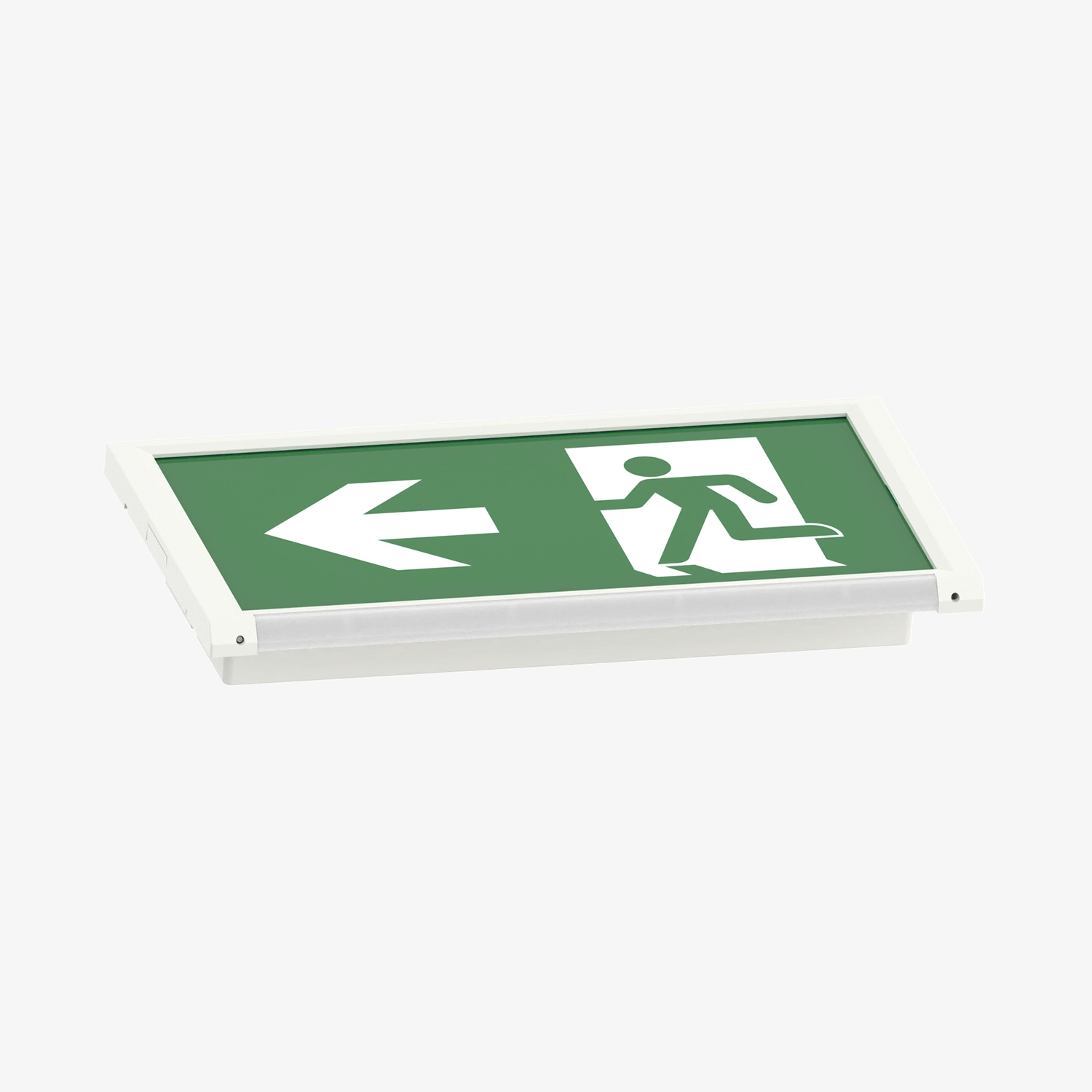

GUARDIAN Wall mounted Exitsign
This is a versatile bulkhead luminaire, designed for Open-Area anti-panic and Escape Route areas.Suitable for ceiling,recessed and over door mounting provides safe evacuation from the building.With auxiliary lighting.This is a versatile emergency light fixture.
· Feature
·
·
·
·
·
·
·
·
·
·
·
Rated supply voltage 220~240VAC
3h rated duration
Accord with ISO3864-4
Battery could be changed
Self Test Emergency System
Legends easy to change on directions
LiFePO4 with longer life
4-year guarantee
(battery 2-year guarantee)
24M viewing distance(AU)
Wall and Recessed mounted installation mode
· PRODUCT DETAILS
Part No. | Input Voltage | Output Power | Lumen Output | Charge Duration | Duration | Battery | Function |
GRD-M1N1W13-3H-LI | 220~240V | 1W | 60lm | 24H | 3H | 3.2V 1500mAh LiFePO4 | BS/ST/DL/IOT |
GRD-M1N2W13-3H-L | 220~240V | 2W | 130lm | 24H | 3H | 3.2V 3000mAh LiFePO4 | BS/ST/DL/IOT |
Note: BS=Basic ST=Self Test DL=DALI IOT=Zigbee System
· MOUNTING DISTANCE
|
|
Surface | Recessed |
